Sigma Mixer Extruder – The most common device employed in high viscosity processes is the sigma blade mixer with extruder for discharge. A sigma blade mixer extruder is composed of two z-shaped blades mounted on a horizontal trough. The blades run toward each other at different speeds and in a bottom cavity, a mixing screw rotates in reversible directions, either feeding materials to the sigma blades during the mixing cycle or extruding the finished product during discharge.
Z Blade Sigma mixer extruders are used in a wide range of industries and applications including:
Gum bases, Sugar pastes, Adhesives, Polymers, Hydrocolloids, Sealants, Mastics, Soaps, Detergents, Silicone rubbers, Energetics, Brake linings, Confectionery, Waste recycling, Rubber solutions, Fibreglass doughs, Ceramics, Roof tiles.
How the Sigma Mixer Extruder Works
Our Sigma mixer Extruder combines the efficiency of a double arm – sigma blade mixer with the convenience of an extrusion screw for the mixing and discharging of heavy viscous materials.

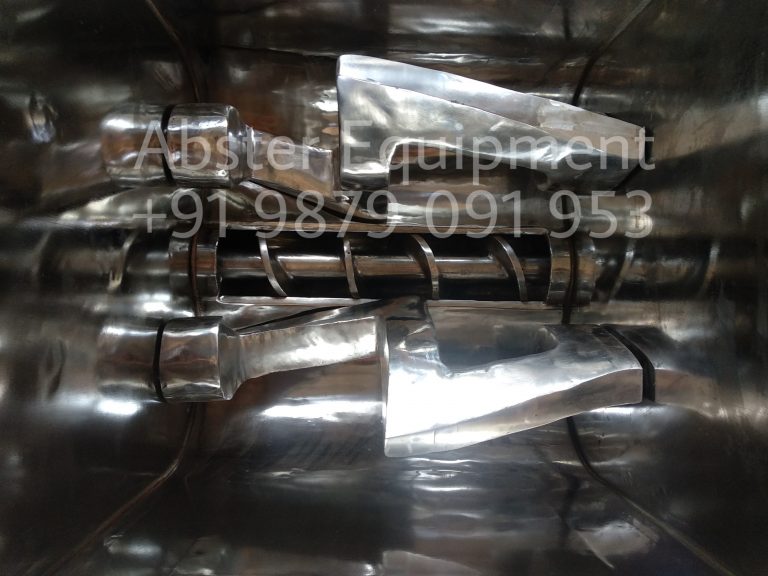

The Kneader Extruder includes a set of counter-rotating kneading blades and a discharge screw. The blades are mounted on a horizontal axis in a u-shaped trough. Below the blades in a separate cavity is the discharge screw. During the mixing cycle the blades rotate toward each other while the mixing screw rotates in a reverse direction, constantly feeding new materials into the mixing blades. After the mixing/kneading cycle is complete, the screw is reversed and it transports the mixed materials from the mix zone out through a discharge die and on to further processing or packaging
Key Features of the Sigma Mixer Machine
1. Double Sigma Arm Design: At the core of the Sigma Mixer Machine lies its distinctive double sigma arm design, meticulously engineered to achieve optimal mixing uniformity and consistency. The dual counter-rotating sigma blades work in tandem to impart a thorough and intensive mixing action, ensuring that materials are homogeneously combined without compromising their integrity or properties.
2. High-Torque Motorization: Equipped with a high-torque motor and robust drive system, the Sigma Mixer Machine delivers formidable mixing capabilities while maintaining energy efficiency and operational reliability. The high-torque motorization ensures consistent and powerful mixing, enabling the thorough amalgamation of materials across a broad spectrum of viscosities, densities, and compositions.
3. Customizable Configurations: The Sigma Mixer Machine is available in a range of customizable configurations, allowing for the adaptation of the machine to specific industry requirements and mixing applications. Whether it’s the incorporation of specialized blade geometries, the integration of advanced control systems, or the implementation of tailored material handling features, the mixer can be tailored to suit diverse operational needs with precision and efficiency.
4. Advanced Heating and Cooling Capabilities: integrated advanced heating and cooling capabilities into the Sigma Mixer Machine, enabling precise temperature control during the mixing process. This feature is particularly advantageous for industries requiring temperature-sensitive mixing, such as confectionery, plastics compounding, and rubber processing.
5. Intuitive Control and Monitoring: The Sigma Mixer Machine is equipped with advanced control and monitoring systems that provide operators with real-time insights into the mixing process. From precise speed and time controls to comprehensive monitoring of temperature and pressure parameters, the mixer’s intuitive control interface empowers operators to oversee and fine-tune the mixing process with unparalleled accuracy and control.
Benefits of Using the Sigma Mixer Machine
1. Unparalleled Mixing Precision: The Sigma Mixer Machine’s double sigma arm design ensures unparalleled mixing precision, resulting in consistently homogenized blends with minimal variance. This precision is essential for industries where uniformity and consistency are paramount, such as pharmaceuticals, specialty chemicals, and food processing.
2. Versatility Across Materials: Whether dealing with powders, pastes, doughs, or highly viscous materials, the Sigma Mixer Machine excels in accommodating a diverse range of materials and compositions. Its adaptable design and customizable configurations enable it to effectively mix materials with varying viscosities, densities, and rheological properties, making it a versatile solution for a wide array of industrial applications.
3. Enhanced Product Quality: By facilitating thorough and uniform mixing, the Sigma Mixer Machine contributes to the enhancement of product quality across industries. The machine’s ability to achieve precise and consistent mixing results in products with superior uniformity, reduced agglomeration, and improved overall quality, meeting the stringent standards of modern manufacturing and processing operations.
4. Operational Efficiency: The Sigma Mixer Machine’s high-torque motorization, customizable configurations, and advanced control systems collectively contribute to operational efficiency, enabling seamless integration into production processes. Its ability to deliver reliable and efficient mixing performance translates into streamlined operations, reduced processing times, and optimized resource utilization, ultimately driving operational excellence and cost-effectiveness.
5. Compliance and Hygiene: With its sanitary design and adherence to industry-specific regulations, the Sigma Mixer Machine ensures compliance with stringent hygiene and safety standards. This is particularly crucial in industries such as pharmaceuticals, food processing, and cosmetics, where product purity, cleanliness, and regulatory compliance are non-negotiable aspects of operations.
Technical Specification of Sigma mixer Extruder
| Models | Working Capacity | Gross Capacity | Main Motor | Extruder Motor |
| SME – 50 | 50 Liters | 80 Liters | 7.5 H.P. | 1.5 H.P. |
| SME – 75 | 75 Liters | 110 Liters | 10 H.P. | 2 H.P. |
| SME – 100 | 100 Liters | 150 Liters | 15 H.P. | 2 H.P. |
| SME – 150 | 150 Liters | 200 Liters | 20 H.P. | 3 H.P. |
| SME – 200 | 200 Liters | 300 Liters | 25 H.P. | 3 H.P. |
| SME – 400 | 400 Liters | 550 Liters | 40 H.P. | 5 H.P. |
| SME – 500 | 500 Liters | 750 Liters | 50 H.P. | 5 H.P. |
| SME – 750 | 750 Liters | 1150 Liters | 60 H.P. | 5 H.P. |
| SME – 1000 | 1000 Liters | 1500 Liters | 70 H.P. | 7.5 H.P. |
| SME – 1500 | 1500 Liters | 2100 Liters | 80 H.P. | 7.5 H.P. |
| SME – 2000 | 2000 Liters | 2600 Liters | 90 H.P. | 10 H.P. |
| SME – 3000 | 3000 Liters | 3800 Liters | 120 H.P. | 10 H.P. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements. * Rights of technical improvements & modification reserved. * Illustrations & dimensions are shown for information purpose only.
